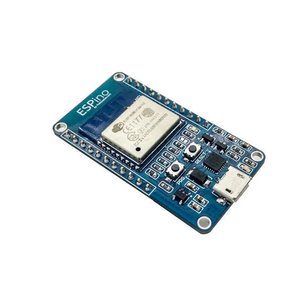

ThaiEasyElec's ESPino32 Development Board Pinout and Technical Specifications
Code name: ESPino32
ThaiEasyElec's ESPino32 development board is based on esp32 microcontroller and uses xtensa architecture. This development board has a maximum CPU frequency of 240 MHz and a flash size of 4MB.
Quick Links
ThaiEasyElec's ESPino32 Specs
Below you can find the specifications of ThaiEasyElec's ESPino32, such as features, connectivity options, and ThaiEasyElec's ESPino32 technical specs.
Features
- 38 digital IO pins
- 16 external interrupt pins
- 16 analog input pins
- 20 PWM pins
Connectivity
- WiFi: 802.11 b/g/n (2.4 GHz)
- Bluetooth: 4.2
- WiFi: 4.2
Technical specs
| Clock Speed | 240 MHz |
| Flash size | 4MB |
| Microcontroller | esp32 |
| Architecture | xtensa |
ThaiEasyElec's ESPino32 Pinout

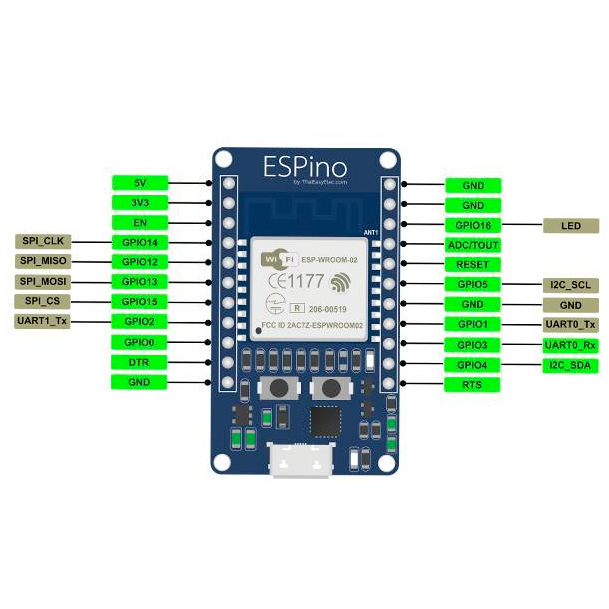

ThaiEasyElec's ESPino32 Pins Mapping Arduino IDE
Below you can find the ThaiEasyElec's ESPino32 pinout. This development board provides 38 digital IO pins, out of which 16 can be used as an external interrupt pins , 16 as analog input pins and 20 pins have Pulse-Width Modulation (PWM) .
| Pin | Analog | Touch | PWM | Other |
|---|---|---|---|---|
| 0 | A11 | T1 | BUILTIN_KEY | |
| 1 | PWM | TX | ||
| 2 | A12 | T2 | PWM | |
| 3 | PWM | RX | ||
| 4 | A10 | T0 | PWM | |
| 5 | PWM | SS | ||
| 12 | A15 | T5 | PWM | |
| 13 | A14 | T4 | PWM | |
| 14 | A16 | T6 | PWM | |
| 15 | A13 | T3 | PWM | |
| 16 | PWM | LED_BUILTIN | ||
| 18 | PWM | SCK | ||
| 19 | PWM | MISO | ||
| 21 | PWM | SDA | ||
| 22 | PWM | SCL | ||
| 23 | PWM | MOSI | ||
| 25 | A18 | PWM | DAC1 | |
| 26 | A19 | PWM | DAC2 | |
| 27 | A17 | T7 | PWM | |
| 32 | A4 | T9 | PWM | |
| 33 | A5 | T8 | PWM | |
| 34 | A6 | |||
| 35 | A7 | |||
| 36 | A0 | |||
| 39 | A3 |
Default Tools
| Bootloader tool | esptool_py |
| Uploader tool | esptool_py |
| Network uploader tool | esp_ota |
| Bootloader address | 0x1000 |
| Flash mode | dio |
| Boot mode | dio |
| PSRAM type | |
| Maximum upload size | 1280 Kb (1310720 B) |
| Maximum data size | 320 Kb (327680 B) |
The ThaiEasyElec's ESPino32 development board by default uses esptool_py uploader tool, esp_ota network uploader tool for Over-the-air (OTA) uploads and esptool_py bootloader tool. The bootloader starts at address "0x1000". Flash mode and boot mode for ThaiEasyElec's ESPino32 development board by default is dio and dio respectively.
