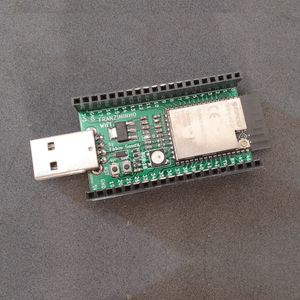

Franzininho WiFi MSC Development Board Pinout and Technical Specifications
Code name: FRANZININHO_WIFI_MSC
Franzininho WiFi MSC development board is based on esp32s2 microcontroller and uses xtensa architecture. This development board has a maximum CPU frequency of 240 MHz and a flash size of 4MB.
Quick Links
Franzininho WiFi MSC Specs
Below you can find the specifications of Franzininho WiFi MSC, such as features, connectivity options, and Franzininho WiFi MSC technical specs.
Features
- 48 digital IO pins
- 46 external interrupt pins
- 20 analog input pins
- 26 PWM pins
Connectivity
- WiFi: 802.11 b/g/n (2.4 GHz)
Technical specs
| Clock Speed | 240 MHz |
| Flash size | 4MB |
| Microcontroller | esp32s2 |
| Architecture | xtensa |
Franzininho WiFi MSC Pins Mapping Arduino IDE
Below you can find the Franzininho WiFi MSC pinout. This development board provides 48 digital IO pins, out of which 46 can be used as an external interrupt pins , 20 as analog input pins and 26 pins have Pulse-Width Modulation (PWM) .
| Pin | Analog | Touch | PWM | Other |
|---|---|---|---|---|
| 1 | A0 | T1 | PWM | |
| 2 | A1 | T2 | PWM | |
| 3 | A2 | T3 | PWM | |
| 4 | A3 | T4 | PWM | |
| 5 | A4 | T5 | PWM | |
| 6 | A5 | T6 | PWM | |
| 7 | A6 | T7 | PWM | |
| 8 | A7 | T8 | PWM | SDA |
| 9 | A8 | T9 | PWM | SCL |
| 10 | A9 | T10 | PWM | |
| 11 | A10 | T11 | PWM | |
| 12 | A11 | T12 | PWM | |
| 13 | A12 | T13 | PWM | |
| 14 | A13 | T14 | PWM | |
| 15 | A14 | PWM | ||
| 16 | A15 | PWM | ||
| 17 | A16 | PWM | DAC1 | |
| 18 | A17 | PWM | DAC2 | |
| 19 | A18 | PWM | ||
| 20 | A19 | PWM | ||
| 34 | PWM | SS | ||
| 35 | PWM | MOSI | ||
| 36 | PWM | SCK | ||
| 37 | PWM | MISO | ||
| 43 | PWM | TX | ||
| 44 | PWM | RX | ||
| 0x00000000 | USB_FW_MSC_SERIAL_NUMBER |
Default Tools
| Bootloader tool | esptool_py |
| Uploader tool | esptool_py |
| Network uploader tool | esp_ota |
| Bootloader address | 0x1000 |
| Flash mode | dio |
| Boot mode | qio |
| PSRAM type | |
| Maximum upload size | 1280 Kb (1310720 B) |
| Maximum data size | 320 Kb (327680 B) |
The Franzininho WiFi MSC development board by default uses esptool_py uploader tool, esp_ota network uploader tool for Over-the-air (OTA) uploads and esptool_py bootloader tool. The bootloader starts at address "0x1000". Flash mode and boot mode for Franzininho WiFi MSC development board by default is dio and qio respectively.
